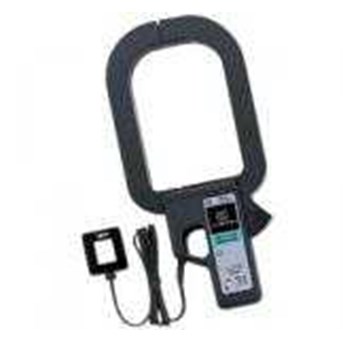

MULTI-TRANK YORITSU 8008

MULTI-TRAN KYORITSU TYPE 8008 Keterangan Clamp your instrument around the pick-up coil of the multi-tran. Then, clamp the transformer jaws of the multi-tran on the conductor, as shown below. Multiply the reading of your clamp meter by 10 to obtain the current value measured. Measuring Range : 0~ 3000A AC Ratio/ Range : 10 : 1 ( input to output) Accuracy : | ± 2% of input± 0.5A Allowable Measurement Time : 0~ 1000A ( continuous) , 1000~ 1500A ( 10 minutes max.) 3000A ( 30 seconds max.) Conductor Size : Ø 100mm max.( 100 × 150mm) Frequency Response : 50Hz/ 60Hz Safety Standard : IEC61010-1 CAT.III 300V Pollution Degree 2 Withstand Voltage : 3000V AC for 1 minute Dimensions : 317( L) × 150( W) × 30( D) mm 45( L) × 40( W) × 10( D) mm Output coil Weight : 750g approx. Accessories : 9056( Carrying Case) For use with following models : * 2002PA, 2002R, 2003A( AC only) , 2004( AC only) , 2006, 2007A( AC only) , 2009A( AC only) , 2608A, 2805, 2017, 2027, 2037( AC only) , 2412, 2417, 8113( AC only) , 2031, 2033( AC only) , 2431, 2432, 2433, 2433R, 2434 * These Multi-Trans can not be used for leakage current measurement.
