Detail HAMMER TEST ORIGINAL SCHMIDT PROSEQ CO-550.1s TYPE N
PROSEQ HAMMER TEST
Concrete testing with original SCHMIDT Hammer is the most frequently used method worldwide for non-destructive testing of concrete and structural components. No other manufacturer offers such a wide range of
different types. Each hammer is designed for specific test applications.
Type N:
Measuring range 10 to 70 N/ mm² compressive ( below 25 N/ mm² type P is better suited) .
Impact energy = 2, 207 Nm.
Rebound values are read from a dial.

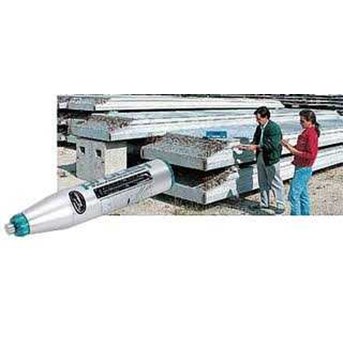

Testing the compressive strength of a prefabricated concrete girder. Rebound values are recorded by an assistant who will calculate mean values and read compressive strength values from a conversion diagram.
